ErgoQIC安全联轴器

所属品牌：阿特拉斯·科普柯Atlas Copco

产品型号：ERGOQIC系列

Atlas 阿特拉斯是一款结实耐用的全流式快接头，并且对快接头内部的空气没有限制。Ergoqic 具有安全功能的球阀联轴器，可以提供大的空气流量,采用ErgoQIC升级空气系统，都可提高作业效率和能源效率。适用于大多数装配工具、钻机和磨床，设计采用小压降，以减少能源消耗。联轴器采用硬化钢制成，无泄漏设计，使用寿命长，适用于大负荷应用。

点我询价

商品描述

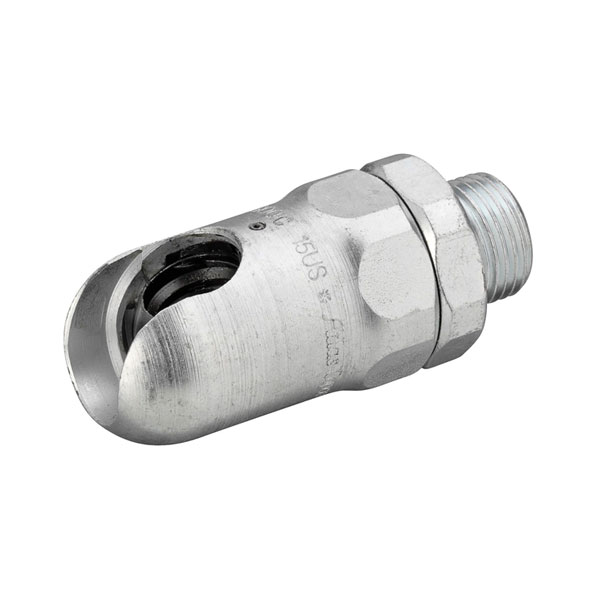

Atlas阿特拉斯ErgoQIC安全联轴器

Atlas ErgoQIC<b style=

阿特拉斯ErgoQIC安全联轴器优势特点

全流连接

坚固耐用

节能

使用寿命长

无气流限制

操作方便快捷，工具更换方便。

人体工学设计，体积小，重量轻

由于高空气流量和压力而提高作业效率

Atlas ErgoQIC安全联轴器各型号技术参数

型号	ID	连接	螺纹尺寸	工作压力	流量 (0.5 bar ΔP)	流量 (7 psi ΔP)	软管尺寸
ERGOQIC-08-M08U	8202111509	Male	1/4 NPT	230 psi	30 l/s	64 cfm
ERGOQIC-08E-H13	8202110603	Hose		230 psi	38 l/s	80 cfm	1/2 inch
ERGOQIC-15E-M10	8202110660	Male	3/8 BSP	230 psi	76 l/s	161 cfm
ERGOQIC-08E-H10	8202110602	Hose		230 psi	38 l/s	80 cfm	3/8 inch
ERGOQIC-10-F08	8202112100	Female	1/4 BSP	230 psi	60 l/s	128 cfm
ERGOQIC-10-M10U	8202112515	Male	3/8 NPT	230 psi	65 l/s	138 cfm
ERGOQIC-08US-M10	8202110307	Male	3/8 BSP	230 psi	17 l/s	35 cfm
ERGOQIC-10US-M15	8202110711	Male	1/2 BSP	230 psi	43 l/s	90 cfm
ERGOQIC-15E-H13	8202110651	Hose		230 psi	76 l/s	161 cfm	1/2 inch
ERGOQIC-08US-H06	8202110300	Hose		230 psi	17 l/s	35 cfm	1/4 inch
ERGOQIC-08-F08	8202111090	Female	1/4 BSP	230 psi	29 l/s	61 cfm
ERGOQIC-15US-M10U	8202110808	Male	3/8 NPT	230 psi	72 l/s	153 cfm
ERGOQIC-08US-F10U	8202110312	Female	3/8 NPT	230 psi	14 l/s	30 cfm
ERGOQIC-10-F10U	8202112535	Female	3/8 NPT	230 psi	65 l/s	138 cfm
ERGOQIC-10US-H20	8202110705	Hose		230 psi	43 l/s	90 cfm	3/4 inch
ERGOQIC-15US-M10	8202110809	Male	3/8 BSP	230 psi	77 l/s	162 cfm
ERGOQIC-08-F10U	8202111535	Female	3/8 NPT	230 psi	30 l/s	64 cfm
ERGOQIC-10US-F15U	8202110716	Female	1/2 NPT	230 psi	33 l/s	70 cfm
ERGOQIC-10US-F08	8202110713	Female	1/4 BSP	230 psi	43 l/s	90 cfm
ERGOQIC-08-M15U	8202111525	Male	1/2 NPT	230 psi	30 l/s	64 cfm
ERGOQIC-08E-M08	8202110604	Male	1/4 BSP	230 psi	38 l/s	80 cfm
ERGOQIC-10-ASIA-FT08	8202110409	Female	1/4 BSPT	230 psi	35 l/s	73 cfm
ERGOQIC-15US-M15U	8202110810	Male	1/2 NPT	230 psi	72 l/s	153 cfm
ERGOQIC-15US-M15	8202110811	Male	1/2 BSP	230 psi	77 l/s	162 cfm
ERGOQIC-08-H08	8202111012	Hose		230 psi	29 l/s	61 cfm	5/16 inch
ERGOQIC-15US-H13	8202110803	Hose		230 psi	77 l/s	162 cfm	1/2 inch
ERGOQIC-10US-F10U	8202110714	Female	3/8 NPT	230 psi	33 l/s	70 cfm
ERGOQIC-08-M10U	8202111517	Male	3/8 NPT	230 psi	30 l/s	64 cfm
ERGOQIC-10-ASIA-FT10	8202110410	Female	3/8 BSPT	230 psi	35 l/s	73 cfm
ERGOQIC-10US-F15	8202110717	Female	1/2 BSP	230 psi	43 l/s	90 cfm
ERGOQIC-10US-H13	8202110703	Hose		230 psi	43 l/s	90 cfm	1/2 inch
ERGOQIC-15US-H20	8202110805	Hose		230 psi	77 l/s	162 cfm	3/4 inch
ERGOQIC-15E-H20	8202110653	Hose		230 psi	76 l/s	161 cfm	3/4 inch
ERGOQIC-08US-F10	8202110313	Female	3/8 BSP	230 psi	17 l/s	35 cfm
ERGOQIC-10US-M10U	8202110708	Male	3/8 NPT	230 psi	33 l/s	70 cfm
ERGOQIC-10-F15	8202112110	Female	1/2 BSP	230 psi	60 l/s	128 cfm
ERGOQIC-08US-H10	8202110302	Hose		230 psi	17 l/s	35 cfm	3/8 inch
ERGOQIC-10-ASIA-MT10	8202110406	Male	3/8 BSPT	230 psi	35 l/s	73 cfm
ERGOQIC-10-H08	8202112040	Hose		230 psi	60 l/s	128 cfm	5/16 inch
ERGOQIC-10-M25	8202112099	Male	1 BSP	230 psi	60 l/s	128 cfm
ERGOQIC-10-M08	8202112085	Male	1/4 BSP	230 psi	60 l/s	128 cfm
ERGOQIC-08US-M08U	8202110304	Male	1/4 NPT	230 psi	14 l/s	30 cfm
ERGOQIC-10US-F10	8202110715	Female	3/8 BSP	230 psi	43 l/s	90 cfm
ERGOQIC-15E-M15	8202110661	Male	1/2 BSP	230 psi	76 l/s	161 cfm
ERGOQIC-10-M15	8202112097	Male	1/2 BSP	230 psi	60 l/s	128 cfm
ERGOQIC-15US-F10	8202110815	Female	3/8 BSP	230 psi	77 l/s	162 cfm
ERGOQIC-10US-M15U	8202110710	Male	1/2 NPT	230 psi	33 l/s	70 cfm
ERGOQIC-08E-M10	8202110605	Male	3/8 BSP	230 psi	38 l/s	80 cfm
ERGOQIC-08-H06	8202111004	Hose		230 psi	29 l/s	61 cfm	1/4 inch
ERGOQIC-10-F10	8202112105	Female	3/8 BSP	230 psi	60 l/s	128 cfm
ERGOQIC-10-H06	8202112030	Hose		230 psi	60 l/s	128 cfm	1/4 inch
ERGOQIC-10-ASIA-MT08	8202110405	Male	1/4 BSPT	230 psi	35 l/s	73 cfm
ERGOQIC-15US-F10U	8202110814	Female	3/8 NPT	230 psi	72 l/s	153 cfm
ERGOQIC-08US-M08	8202110305	Male	1/4 BSP	230 psi	17 l/s	35 cfm
ERGOQIC-08-H13	8202111040	Hose		230 psi	29 l/s	61 cfm	1/2 inch
ERGOQIC-15E-F15	8202110671	Female	1/2 BSP	230 psi	76 l/s	161 cfm
ERGOQIC-08US-F08	8202110311	Female	1/4 BSP	230 psi	17 l/s	35 cfm
ERGOQIC 08E H10	8202110612	Hose		230 psi	38 l/s	80 cfm	3/8 inch
ERGOQIC-10-M20	8202112098	Male	3/4 BSP	230 psi	60 l/s	128 cfm
ERGOQIC-08US-H08	8202110301	Hose		230 psi	17 l/s	35 cfm	5/16 inch
ERGOQIC-10-ASIA-H13	8202110403	Hose		230 psi	35 l/s	73 cfm	1/2 inch
ERGOQIC-10-M15U	8202112523	Male	1/2 NPT	230 psi	65 l/s	138 cfm
ERGOQIC-10-ASIA-H10	8202110402	Hose		230 psi	35 l/s	73 cfm	3/8 inch
ERGOQIC-08E-F10	8202110608	Female	3/8 BSP	230 psi	38 l/s	80 cfm
ERGOQIC-08US-M10U	8202110306	Male	3/8 NPT	230 psi	14 l/s	30 cfm
ERGOQIC-10-M10	8202112093	Male	3/8 BSP	230 psi	60 l/s	128 cfm
ERGOQIC-15E-H16	8202110652	Hose		230 psi	76 l/s	161 cfm	5/8 inch
ERGOQIC-15E-M20	8202110662	Male	3/4 BSP	230 psi	76 l/s	161 cfm
ERGOQIC-10-ASIA-FT15	8202110411	Female	1/2 BSPT	230 psi	35 l/s	73 cfm
ERGOQIC-10US-H10	8202110702	Hose		230 psi	43 l/s	90 cfm	3/8 inch
ERGOQIC-15US-H16	8202110804	Hose		230 psi	77 l/s	162 cfm	5/8 inch
ERGOQIC-08-M10	8202111079	Male	3/8 BSP	230 psi	29 l/s	61 cfm
ERGOQIC-08E-H08	8202110601	Hose		230 psi	38 l/s	80 cfm	5/16 inch
ERGOQIC-08-H10	8202111038	Hose		230 psi	29 l/s	61 cfm	3/8 inch
ERGOQIC-15E-F10	8202110670	Female	3/8 BSP	230 psi	76 l/s	161 cfm
ERGOQIC-08E-M15	8202110606	Male	1/2 BSP	230 psi	38 l/s	80 cfm
ERGOQIC-10US-M08U	8202110706	Male	1/4 NPT	230 psi	33 l/s	70 cfm
ERGOQIC-15US-H10	8202110802	Hose		230 psi	77 l/s	162 cfm	3/8 inch
ERGOQIC-08US-F08U	8202110310	Female	1/4 NPT	230 psi	14 l/s	30 cfm
ERGOQIC-08US-M15	8202110309	Male	1/2 BSP	230 psi	17 l/s	35 cfm
ERGOQIC-08E-F15	8202110609	Female	1/2 BSP	230 psi	38 l/s	80 cfm
ERGOQIC-10-H16	8202112050	Hose		230 psi	60 l/s	128 cfm	5/8 inch
ERGOQIC-08-F10	8202111095	Female	3/8 BSP	230 psi	29 l/s	61 cfm
ERGOQIC-10-M08U	8202112507	Male	1/4 NPT	230 psi	65 l/s	138 cfm
ERGOQIC-10-H20	8202112060	Hose		230 psi	60 l/s	128 cfm	3/4 inch
ERGOQIC-10-ASIA-MT15	8202110407	Male	1/2 BSPT	230 psi	35 l/s	73 cfm
ERGOQIC-08E-F08	8202110607	Female	1/4 BSP	230 psi	38 l/s	80 cfm
ERGOQIC-10-H10	8202112002	Hose		230 psi	60 l/s	128 cfm	3/8 inch
ERGOQIC-10US-F08U	8202110712	Female	1/4 NPT	230 psi	33 l/s	70 cfm
ERGOQIC-10US-M10	8202110709	Male	3/8 BSP	230 psi	43 l/s	90 cfm
ERGOQIC-08US-M15U	8202110308	Male	1/2 NPT	230 psi	14 l/s	30 cfm
ERGOQIC-10-F08U	8202112530	Female	1/4 NPT	230 psi	65 l/s	138 cfm
ERGOQIC-08-M08	8202111061	Male	1/4 BSP	230 psi	29 l/s	61 cfm
ERGOQIC-10-ASIA-H06	8202110400	Hose		230 psi	35 l/s	73 cfm	1/4 inch
ERGOQIC-08E-H06	8202110600	Hose		230 psi	38 l/s	80 cfm	1/4 inch
ERGOQIC-08-M15	8202111087	Male	1/2 BSP	230 psi	29 l/s	61 cfm
ERGOQIC-10US-H16	8202110704	Hose		230 psi	43 l/s	90 cfm	5/8 inch
ERGOQIC-08-F08U	8202111530	Female	1/4 NPT	230 psi	30 l/s	64 cfm
ERGOQIC-15US-F15	8202110817	Female	1/2 BSP	230 psi	77 l/s	162 cfm
ERGOQIC-15US-F15U	8202110816	Female	1/2 NPT	230 psi	72 l/s	153 cfm
ERGOQIC-10-H13	8202112010	Hose		230 psi	60 l/s	128 cfm	1/2 inch
ERGOQIC-10-ASIA-H08	8202110401	Hose		230 psi	35 l/s	73 cfm	5/16 inch
ERGOQIC-10US-M08	8202110707	Male	1/4 BSP	230 psi	43 l/s	90 cfm
